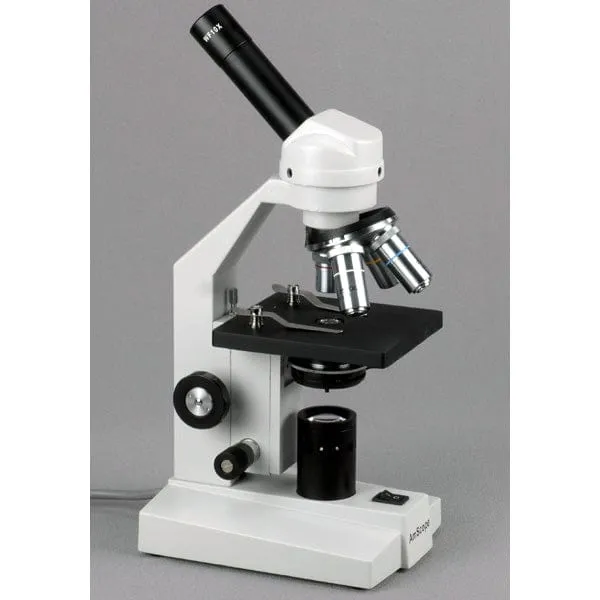

This is a brand new compound microscope with 640x480 Pixel USB2.0 digital image system that captures microscope images and displays live video on your computer screens. It comes with eight magnification settings (40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X), coarse & fine focusing and electrical illuminating system plus a 10pcs microscope slide set.

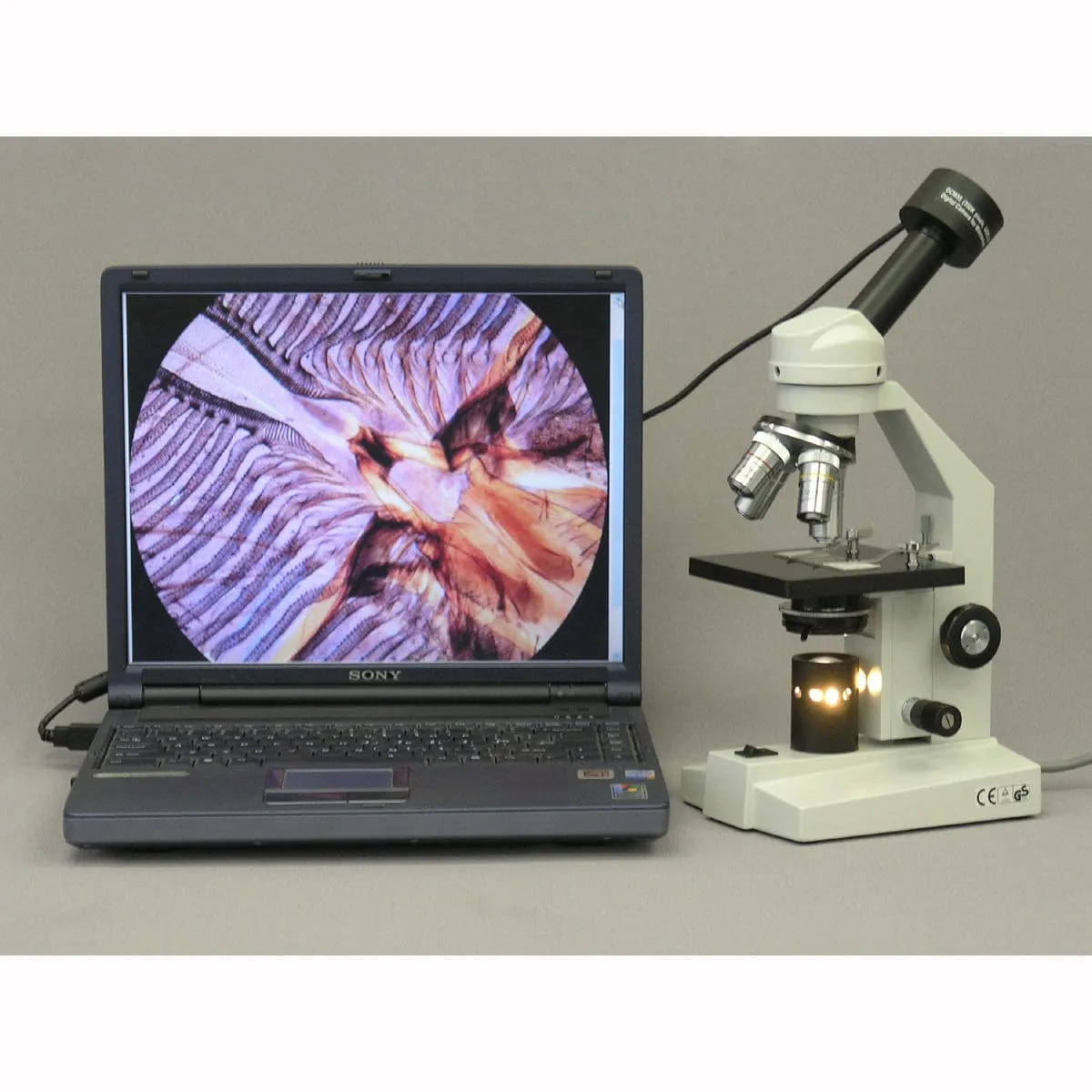

The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux. The 0.37X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop.

The slide set includes five blank and five prepared slides packed in a plastic box. The prepared slides provide convenience for you to test the microscope and the blank slides are for you to make your own specimens. This microscopy package meets all the requirements of the textbooks up to college. It is a perfect system for teaching demonstration or clinical examination. It is also an ideal microscope for family or home school applications.

Features:

• A great affordable compound microscope with digital image system!
• High quality perfect for vets or students
• 360 degree rotatable monocular head
• 45 degree inclined eye tube
• Large plain stage with clips and stain resistant finish
• Separate coarse fine focusing system
• Fully coated optical system with high resolution
• Crystal clear sharp images
• Eight levels of magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
• Upward stage stopper for protecting slides and objectives
• Built-in electrical illumination system
• Abbe condenser with iris diaphragm filter holder
• Solid metal frame construction with stain resistant enamel finish
• Dual focusing control knobs
• Full optical glass elements
• All metal mechanical components
• Precise ground glass lenses
• Four DIN Achromatic objectives included
• Two (WF10X and WF16X) eyepieces included
• Spare bulb, fuse and a bottle of immersion oil included
• A slide set included with five blank and five prepared slides included. Prepared slides include pine stem, sunflower stem, onion epidermis, cotton stem and house fly leg
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Nosepiece: quadruple
• Head: 45 degree inclined monocular
• Wide-field Eyepieces: WF10X and WF16X
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (oil, spring)
• Stage Dimensions: 4-3/8" x 4-3/4" (110x120mm)
• Abbe Condenser: NA=1.25 with iris diaphragm filter
• Focusing Control: rack pinion
• Illumination: tungsten lamp, 20Watt
• Power Supply: 110V (220V version available)
• Accessories: dust cover and a bottle of immersion oil
• Microscope Dimensions: 7-1/2" x 5-1/8" x 15-0"

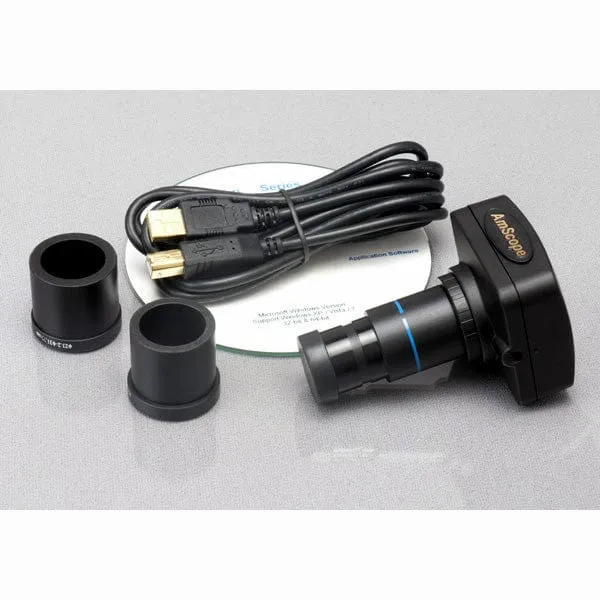

Camera Specs:

• Sensor: Aptina MT9V001 CMOS (color)
• Sensor Size: 1/4"
• Resolution: 640X480 (approx. 350,000 pixels)
• Reduction Lens: 0.37X
• Pixel Size: 5.6µm x 5.6µm
• Frame Rate: 30fps @640x480
• Operating System: Windows XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
• Advanced software for Windows:
  - offers Stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - gives your computer screens the same field of view as your microscope's eyepiece
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

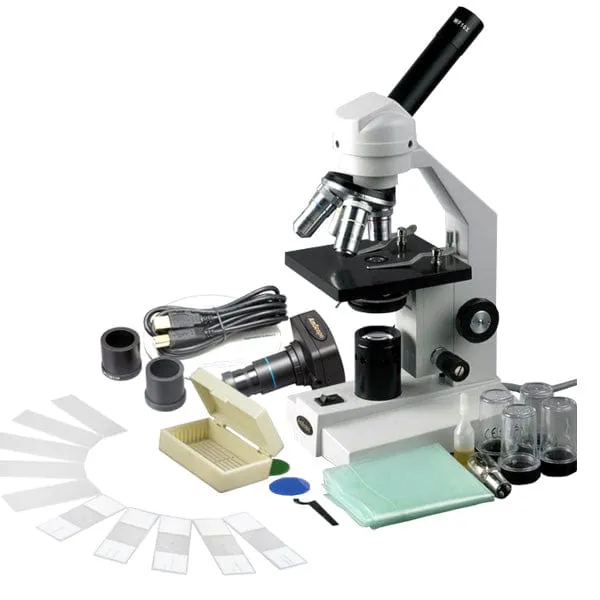

Packing List:

• Four Achromatic DIN Objectives, 4X, 10X, 40X and 100X
• Two Widefield Eyepieces, WF10X & WF16X
• One Slide Set with Five Blank and Five Prepared Slides
• One Wrench for Tension Adjustment
• Color Filters
• Immersion Oil
• Spare Bulb
• Dust Cover
• User's Manual Download
• One 640x480 Pixel USB2.0 Digital Camera with Reduction Lens
• One USB Cable
• Shipping Weight: 12 lbs
