CBS AV/VC One

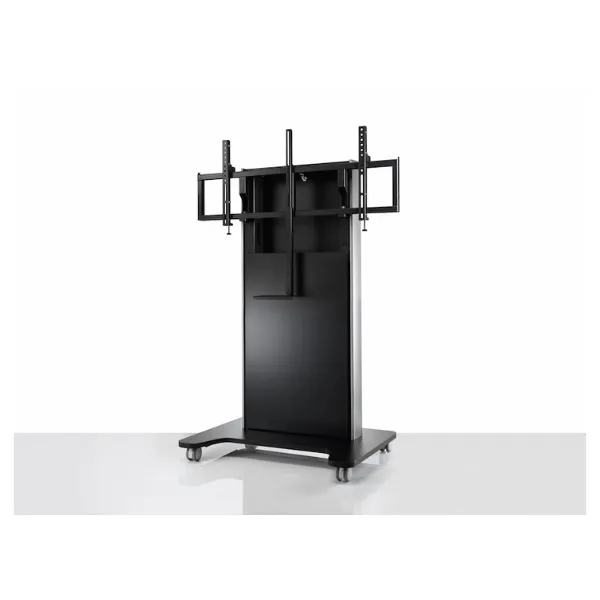

AV/VC One is a simple and elegant support system
for large format displays, offering easy access to the screen for interactive sessions.

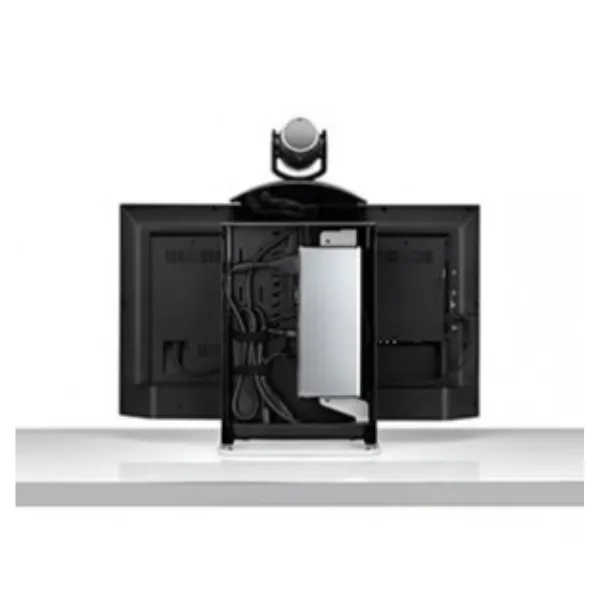

The column structure features internal equipment storage and concealed cable management with a lockable back panel for a secure and tidy installation.

AV/VC One is versatile and expandable, designed to adapt to a variety of working environments. The product can be tailored to suit specific applications using a range of user selectable accessories such as VC camera mount, codec mount or even an additional screen mount kit to expand to dual screen configuration.

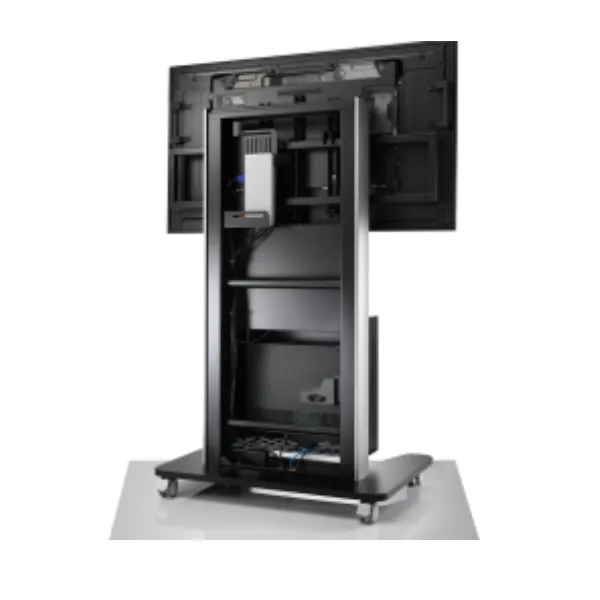

With high capacity media storage capability, AV/VC One is able to conveniently house a range of technology elements, including 19” rack mount equipment to support the most demanding AV or VC applications.

AV/VC One Features

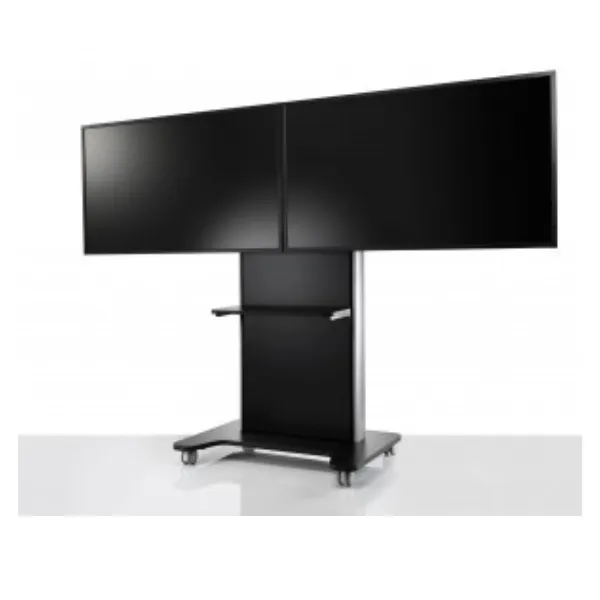

• Suitable for mounting large format display screens from 55" to 80" (Single Screen) or to 65" (Dual Screen) in screen size / max weight 60kg (per screen)

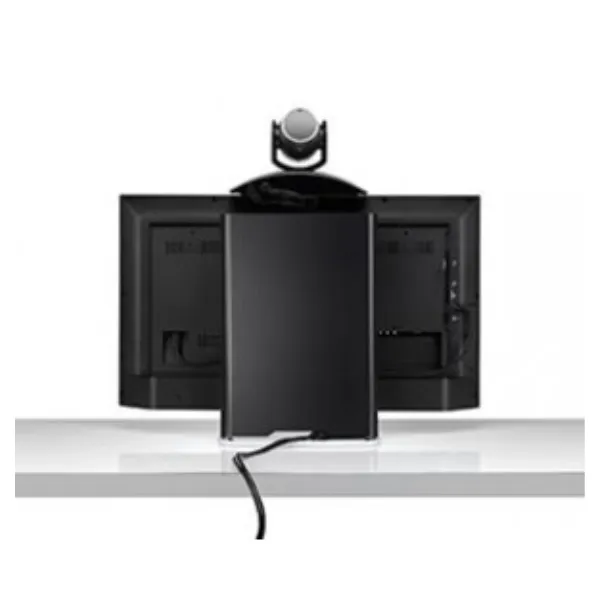

• Column designed for cable management and storing equipment securely with lockable back panel
• Hooking system to permit quick and easy mounting of core parts and accessories
• Ventilation panel in the column ensures air circulation for enclosed equipment
• Low profile base includes a cut out at the front to allow easy access for touch screen use
• Cable management featured throughout product
• Lockable castors

CBS AV/VC One Specifications

• Screen Size: 55" to 80" for single monitor and 55" to 65" for dual
• Screen Weight: Up to 60kg per screen
• Height: 1327 mm
• Width (base): 940 mm
• Width (stand): 495 mm
• Depth (base): 693 mm
• Depth (stand): 283 mm
• Base Height: 109 mm

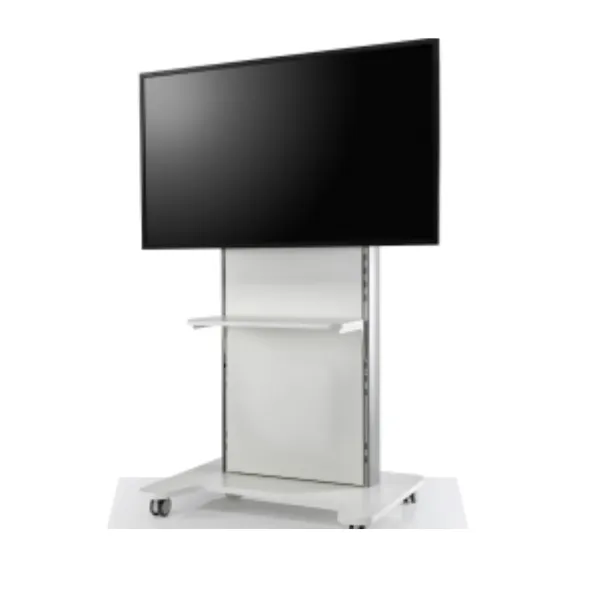

• Colour: Black / White

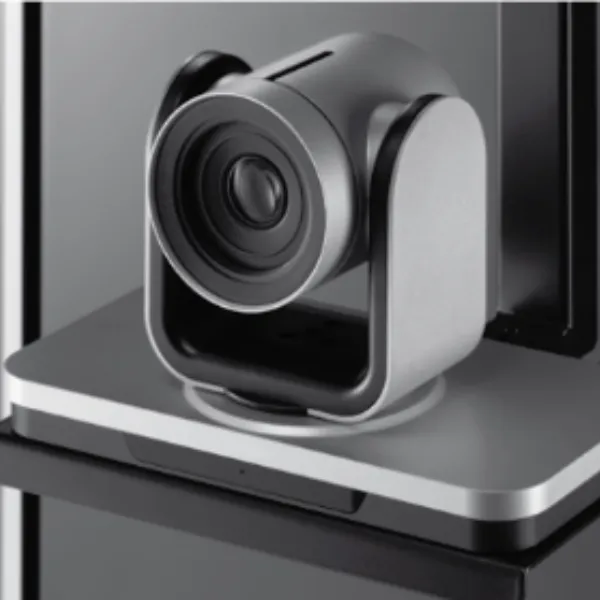

Upgrade to VC Configuration

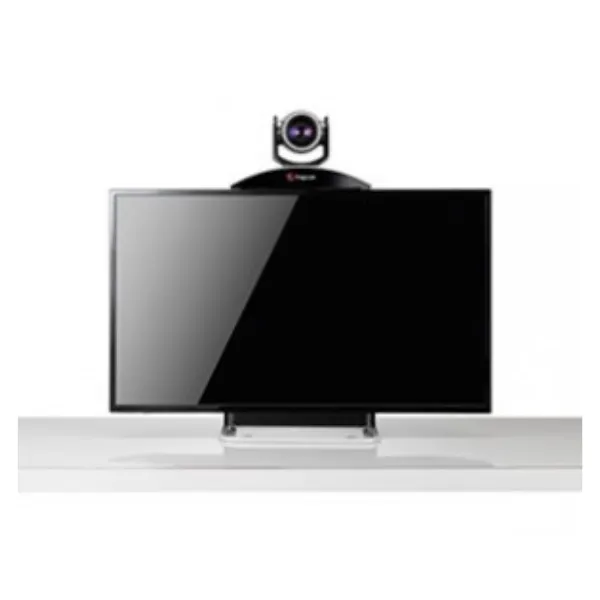

• VC Configuration includes a camera mount that can be positioned above or below screen at a range of heights
• Camera mount is compatible with a range of VC cameras
• Full adjustability, vertically and horizontally
• Easy hook on mounting
• Max load: 6kg
• Dimensions of the camera mount:
• Depth: 270 mm
• Height: 790 mm

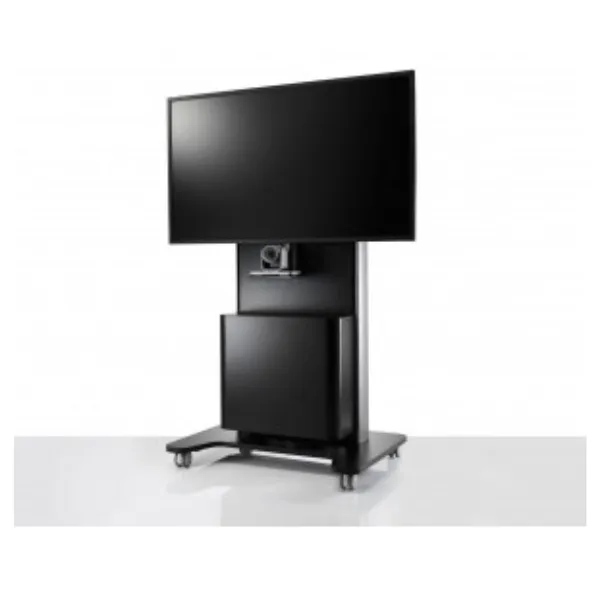

Upgrade to Complete Configuration (includes VC Configuration features)

• Front box that houses media equipment with 5U rack mount capacity with removable lid that includes optional security fixings
• Dimensions of the front box:
• Height: 535 mm
• Width: 612 mm
• Depth: 236
• Max load: 20kg

What's the warranty period?

• Limited lifetime
