DESCRIPTION

• Easy to use, displays any contents via one serial interface, including geometric graphics, texts, and images
• Embedded font libraries, supports 32, 48 and 64 dot matrix GBK Chinese fonts and English fonts
• Built-in 128MB NandFlash, allows the font/image data to be stored in either an external TF card or the internal NandFlash
• 4 grey level displaying, 800×600 resolution
• Adjustable serial interface baud rate, 115200 by default when power up
• Powered from 3.3V to 5V, compatible with logic level
• Ultra low power consumption, sleeping current lower than 5mA
• Comes with host computer software, control it directly on your computer

APPLICATION

• e book
• Shopping mall POS
• Price label
• Industry instrument

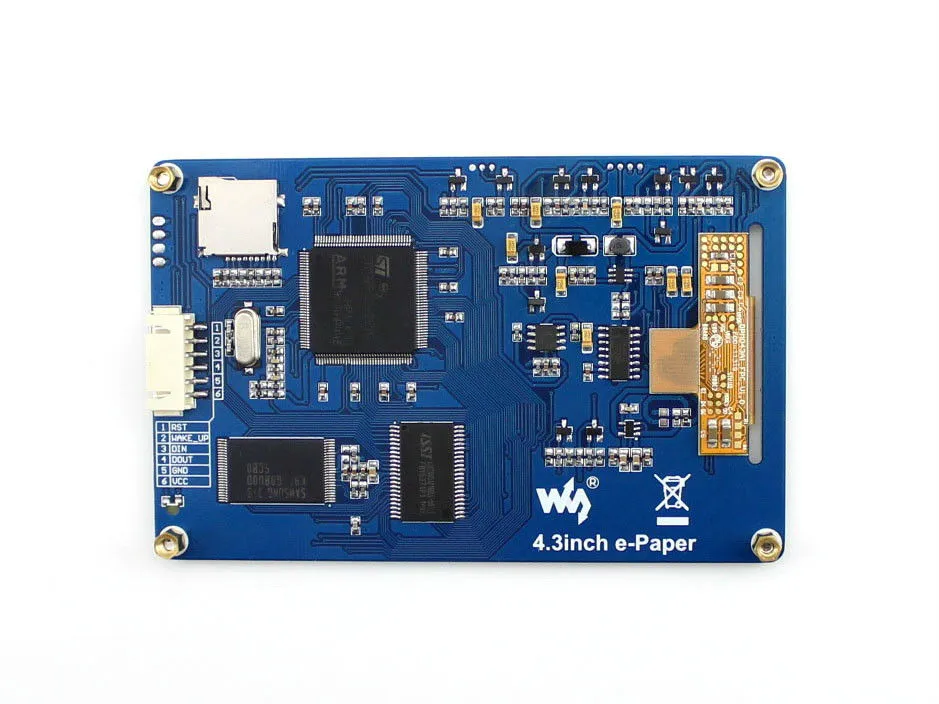

Pin Definitions:

• VCC : 3.3V~5.5V
• GND : GND
• DOUT : Serial data out
• DIN : Serial data in
• WAKE_UP : External wake up
• RST : External reset

Limited by the hardware processing, it usually takes 1.5s to refresh each single frame image, therefore, this e-Paper is NOT capable of playing animations
