Features:

• High Speed Adjustable Slew Rate
• Front Panel or Remote Control
• 19 Rack Mount - 3U High
• Pulse Load Shaping
• Full Range Switching
• Quiet Variable Speed Fans
• Voltage: 20 Volts, 200 Volts, 400 Volts
• Current: 20 Amps, 200 Amps, 300 Amps
• Power: 2000 Watts
• Short Circuit: 0.005 Ohms max

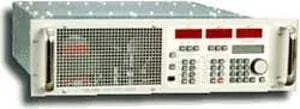

The RBL488 100-300-2000 watt Dynaload has all of the features and capabilities of it's 4000 watt big brother in a smaller, lighter and economical 3U high package. The front panel displays and programming are identical with other RBL 488 Dynaload Models for simplified test system applications. All models include simplified master slave interconnection, full range switching and variable speed fans to assure quiet operation.
