Features:

• Operating Voltage: 50V
• Load Current: 400A
• Power Dissipation: 2000 Watts
• Frequency Range: 0.06 Hz - 20 kHz
• Adjustable Slew Rate: 10µS - 400mS
• Local, Analog, IEEE-488 Control
• Full Scale Range Switching
• Constant Current, Resistance, Voltage, Power
• High Speed Adjustable Slew Rate
• Master/Slave Paralleling
• Variable Pulse Loading
• Short Circuit Capability

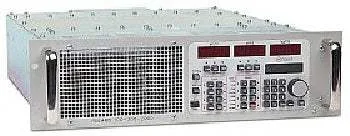

The Dynaload RBL488 100-50-2000 has all of the features and capabilities of it's 4000 watt big brother in a smaller, lighter and economical 3U high package. The front panel displays and programming are identical with other RBL 488 Dynaload Models for simplified test system applications. All models include simplified master slave interconnection, full range switching and variable speed fans to assure quiet operation.
