Features:

• 4-Channel datalogging with 6 Thermocouple types (J, K, E, T, R,S) and 2-Channel datalogging with RTD (Pt100Ohm) probes
• Displays [T1, T2, T3, T4] or differential [T1-T2] reading
• Offset adjustment used for zero function to make relative measurements
• Stores 99 readings manually and 20M readings via 2G SD card
• Records readings with real date and time stamp
• User programmable sampling rate: 1 to 3600 seconds
• Min/Max, Data Hold, Auto Power Off
• Complete with 6 AA batteries, four general purpose Type K bead wire temperature probes, SD card, and hard carrying case

Accessories:

• TP870 - Bead Wire Type K Temperature Probe (-40 to 482°F)
• TP875 - Bead Wire Type K Temperature Probe (-58 to 1000°F)
• TP873-5M - Extra Long Bead Wire Type K Temperature Probe (-22 to 572°F)
• 871515 - General Purpose Type K Probe (-40 to 1292°F)
• 881602 - Type K Surface Probe (-40 to 932°F)
• 881603 - Type K Immersion Probe (-40 to 1472°F)
• 881605 - Type K Immersion Probe (-40 to 1472°F)
• 881616 - Magnetized Type K Surface Probe (-40 to 482°F)
• TP882 - Type K Penetration Probe (-50 to 1000°F)
• 801515 - General Purpose Type J Probe (-40 to 842°F)
• 872502 - Bead Wire Type J Temperature Probe (-40 to 392°F)
• TP200 - Type K Pipe Clamp Temperature Probe (-4 to 200°F)
• TP400 - High Temperature Type K Pipe Clamp (-4 to 450°F)

Specifications:

• Type J: -148 to 2102°F (-100 to 1150°C)
• Type K: -148 to 2372°F (-100 to 1300°C)
• Type T: -58 to 752°F (-50 to 400°C)
• Type E: -58 to 1652°F (-50 to 900°C)
• Type R: 32 to 3092°F (0 to 1700°C)
• Type S: 32 to 2732°F (0 to 1500°C)
• RTD (Pt100): -327 to 1562°F (-200 to 850°C)
• Resolution: 0.1°/1°
• Basic Accuracy: ±0.4% rdg ( 1.8°F/ 1°C) Types J,K,E,T, Pt100
• ±0.5% rdg ( 2°F/ 1°C): Types R,S
• Datalogging: 20M data records using a 2G SD card
• Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)

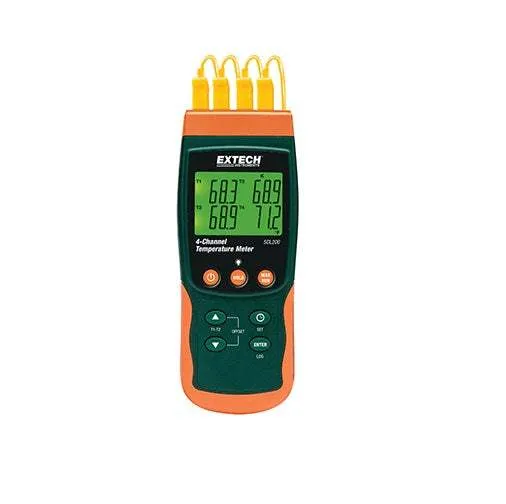

The SDL200-NIST records data on an SD card in Excel format. 4-Channel datalogging with 6 Thermocouple types (J, K, E, T, R,S) and 2-Channel datalogging with RTD (Pt100Ohm) probes. Displays [T1, T2, T3, T4] or differential [T1-T2] readings. Offset adjustment used for zero function to make relative measurements. Stores 99 readings manually and 20M readings via 2G SD card. Records readings with real date and time stamp. User programmable sampling rate from 1 to 3600 seconds. Min/Max, Data Hold, Auto Power Off. Complete with 6 AA batteries, four general purpose Type K bead wire temperature probes, SD card, and hard carrying case.
